7 T3 SERIES
The 7 Series Tier 3 by Landini stands for innovation. Designed with uncompromising comfort, performance and productivity in mind, this tractor range is tailored to meet the needs of the most demanding customers, allowing operators to handle the toughest jobs with ease, whether in the field or on the road. The three models in the range are powered by the new “F.P.T. NEF 6 CYL CR TAA” 24-valve, six-cylinder turbo engines with ELECTRONIC HIGH PRESSURE COMMON RAIL Featuring the “Dual Power“ system to provide additional power for road and PTO applications, these engines deliver plenty of torque making for high flexibility and pulling power. They are located within a rugged chassis which helps reduce noise and vibration levels within the cab. The “Roboshift“ transmission with 24 speeds in six ranges offers a fourspeed on-the-go powershift and incorporates electro-hydraulic range shifting and a left-hand steering-column power shuttle. The transmission is controlled electronically via pushbuttons located on the multi-function armrest and features an “Autoshift” function, ensuring easier operation in the field or during transport operations. A creep speed unit is available as standard for those tasks requiring slow speeds such as harvesting or specialist seed bed preparation. The electro-hydraulically engaged rear PTO features an exchangeable shaft providing 6 or 21 splines and offers four speeds 540/540E/1000/1000E rpm. The electronic control of the PTO always ensures smooth and modulated implement start-up, thereby enhancing operator comfort and reducing maintenance needs. The closed-centre hydraulic system incorporates advanced features to deliver high efficiency and maximum reliability. The system is equipped with a variabledisplacement pump that provides a flow rate of 123 l/min to operate all hydraulic functions and up to six electro-hydraulic remote valves. The electronically-controlled rear hitch with draft sensing on the lower links provides a maximum lift capacity of 9300 Kg and allows a precise control of the implement. A radar sensor is also available for operations where true ground speed is required, this can also be used in difficult ground conditions to improve tractive performance and reduce wheel slip. True versatility can be obtained with a front hitch capable of lifting up to 3500 Kg and a front PTO. The front axle, either rigid-mounted or with electronically-controlled independent suspensions, offers a 55° steering angle, providing excellent manoeuvrability in confined spaces. The “Lounge Cab” is a true high-tech lounge designed to offer the operator a functional and ergonomic environment with logically-arranged controls for maximum comfort and ease of operation. The interior features a high-quality, automotive-grade fit and finish that further enhances the operator comfort.
The new F.P.T.-Nef 6-cylinder turbocharged engines fitted on the 7 Series tractors feature 24 valves and a cylinder displacement of 6728 cm3. All models are equipped with an electronic high-pressure Common Rail fuel injection system and deliver 145 to 225 hp, providing powerful and reliable performance in any working conditions. Advanced electronic control systems ensure optimum clean combustion and compliance with the Tier 3 emission standards, while maintaining excellent fuel economy and delivering 40% torque rise. In addition to this, the Dual Power system, combined with the engine electronics, allows for automatic increase of both power and torque for PTO and transport operations, when needed. A cast-iron chassis mounted on rubber shock absorbers supports the engine to eliminate any load and torsional stress on the front axle, resulting in reduced noise and vibration levels for improved engine reliability and durability. Generous with power, the 7 Series does not skimp when it comes to transmission either. Landini engineers have designed and engineered the Autopowershift transmission to allow this powerful and versatile tractor range to perform a variety of tasks and suit any working conditions. With 32 speeds over four ranges, the Autopowershift transmission provides eight Powershift speeds onthe- go in each range and is available with a choice of mechanical (Techno version) or electronic (Full Tronic version) range shifting. The transmission integrates an electrohydraulic reverse power shuttle which provides a total of 32 forward and 24 reverse speeds. Optionally (for the Techno version), the 7 series tractors can be fitted with a creep speed option, operated by a push button, thus extending flexibility to 48 forward and 40 reverse speeds. Depending on the country’s legal limit, the transmission is available in a 40 or 50 km/h version. The “Lounge Cab” is a true technology lounge that allows the operator to work the tractor with maximum ease and comfort. Designed to offer a safe, stress-free working environment for long hours in the field, this four-post cab with flat-deck platform and rear-hinged doors offers easy access to the driving position and unequalled all-round visibility. The air suspension seat features a multi-function armrest that houses the main tractor controls and the telescopic tilt-adjustable steering column is designed to tilt with the instrument panel. The cab is pressurized to keep a clean, dust-free environment and the highly-efficient automatic climate control maintains the desired cab temperature whatever the outdoor weather conditions. To further increase operator comfort, an electronically-controlled hydraulic cab suspension system is available as an option. The driving position is ergonomically designed and equipped with easyto- use, logically-arranged controls. The cab interior features an automotive-style fit and finish and comes standard with radio with USB port, Bluetooth, MP3 player and four loudspeakers for the maximum comfort of operation. The cab is further equipped with modern and stylish interior and exterior LED lights. The closed-centre hydraulic system with variable-displacement pump provides a flow rate of 123 l/min to the hitch and remote valves, allowing for simultaneous operation of all hydraulic functions. With the raise/ lower control conveniently located on the multi-function joystick controller and the main settings integrated into the right-hand console, the rear hitch guarantees precise implement operation. Offering a maximum lift capacity of 9300 kg, the three-point hitch is Category III and is equipped with lower link draft sensing for accurate implement control. TIER 3 ENGINES: BRILLIANT, RELIABLE POWERFUL
7-160
7-175
7-190
7-215
TIER 3
NEF 6 cyl CR TAA
NEF 6 cyl CR TAA
NEF 6 cyl CR TAA
NEF 6 cyl CR TAA
ELECTRONIC HIGH PRESSURE COMMON RAIL
•
•
•
•
TURBO/AIR TO AIR INTERCOOLER
•
•
•
•
MAX. ENGINE POWER WITH DUAL POWER AT 1900 RPM (ISO TR 14396 ECE R120)
160/118
175/129
192/141
212/156
RATED ENGINE POWER WITH DUAL POWER AT 2200 RPM (ISO TR 14396 ECE R120)
–
170/125
188/138
205/151
MAX. ENGINE POWER AT 1900 RPM (ISO TR 14396 ECE R120)
152/112
165/121
177/130
188/138
RATED ENGINE POWER AT 2200 RPM AT 2200 RPM (ISO TR 14396 ECE R120)
–
159/117
166/122
181/133
MAX. TORQUE (WITH DUAL POWER) (ISO TR 14396 ECE R120)
676 (-)
679 (726)
798 (867)
810 (867)
TORQUE RISE (WITH DUAL POWER)
40% (-)
34% (34%)
51% (44%)
40% (32%)
BORE / STROKE
104 / 132
104 / 132
104 / 132
104 / 132
DISPLACEMENT (CM3) / NO. OF CYLINDERS / NO. OF VALVES
6728 / 6 / 24
6728 / 6 / 24
6728 / 6 / 24
6728 / 6 / 24
FUEL TANK CAPACITY Litres
320
320
320
320
AUTOPOWERSHIFT TRANSMISSION: MAXIMUM VERSATILITY AND FLEXIBILITY
“LOUNGE CAB”, A TRUE HIGH-TECH LOUNGE
HYDRAULIC SYSTEM AND ELECTRONICALLY-OPERATED REAR HITCH

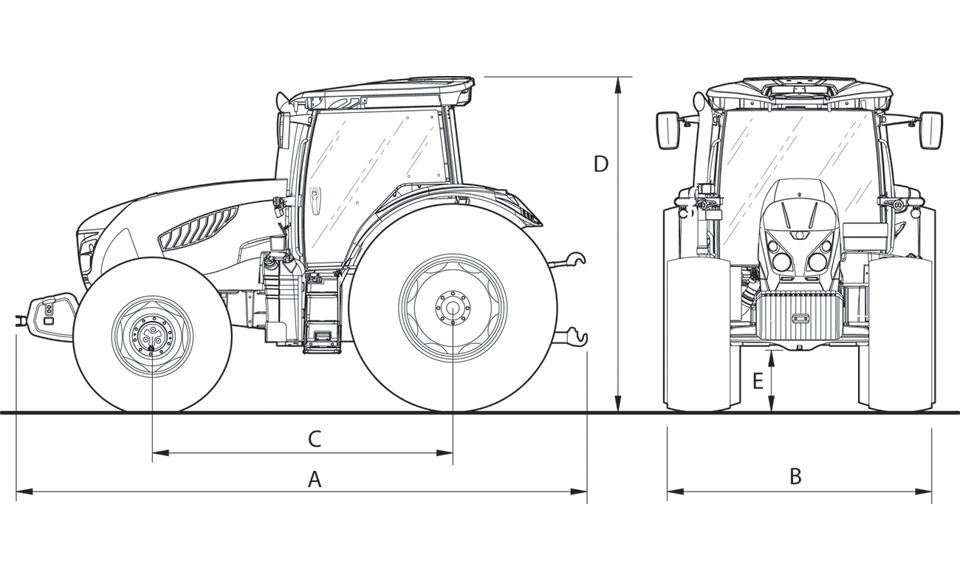

DIMENSIONS AND WEIGHTS
7- 160
7- 175
7-190
7-215
FRONT TYRES
540/65R28
540/65R28
540/65R30
540/65R30
REAR TYRES
650/65R38
650/65R38
650/65R42
650/65R42
A MAX. LENGTH (WITH BALLAST WEIGHTS) [mm]
5260
5260
5360
5360
B MIN. WIDTH [mm]
2430
2430
2430
2430
C WHEELBASE [mm]
2750
2750
2820
2820
D HEIGHT OVER CAB [mm]
2920
2920
3055
3055
E GROUND CLEARANCE 4WD [mm]
550
550
650
650
TOTAL WEIGHT WITHOUT BALLAST WEIGHTS [Kg]
6810
6810
7010
7010
