GLOBAL FARM T3
The Globalfarm Series (90, 100 and 105), available in 2 and 4WD version, was conceived as a restyling of the famous Landini 60 Series. Thanks to its essential and rugged construction it is ideal for a global utilization thus providing first class operation and the highest levels of performance for utmost reliability and long life. All models are powered by the quiet, fuel efficient and environment-friendly 4-cylinder Turbo 1104D-44 (TIER 3) Perkins engines. Besides meeting the Tier 3 emission regulations these engines deliver up to 83, 92,5 and 98,5 HP/ISO, providing exceptional torque back-up and power levels. The modular transmission provides, as standard, 3 ranges and 4 speeds in each range, resulting in a total 12 forward and 4 reverse speeds and comes in three versions for a maximum speed of 30 km per hour. The second option provides 12 forward and 12 reverse speeds with mechanical reverse shuttle. A creep speed option is available on request to achieve 24 forward and 12 reverse speeds. A generously sized platform, an adjustable sprung seat and ergonomically arranged controls provide utmost driving comfort. The sloping bonnet guarantees utmost visibility at the front and tilts open for easy access to the engine when maintenance is required. The 2-post safety frame can be supplied with relevant sun roof on request. The series comes in three models, diversified by three different engine power ratings, and with different types of transmission that make these tractors highly versatile and high performing to meet and even exceed the most demanding customers’ expectations.
The Globalfarm tractors (80,90,100 and 105 models) are equipped with the Perkins 1104D 4-cylinder aspirated and turbo engines. The new engines deliver 83, 92,5 and 98,5 HP/ISO respectively, while offering high torque backup, improved fuel economy, low noise and reduced emissions. The forward tilting hood provides easy access to the engine for routine service and maintenance. The modular transmission is available in three versions. The base version offers 12FWD+4REV speeds without reverse shuttle. The second version offers 12FWD+12REV speeds with mechanical reverse shuttle and the last version be integrated with a creep speed option to provide a total of 24FWD+12REV gears. The centrally-located reverse power shuttle lever allows reversing all gears and engaging the creep speed option. With fully adjustable sprung seat, hydraulic steering and ergonomically-arranged controls, comfort, the driver’s seat allows the operator to work with maximum comfort. The two-post ROPS can be optionally equipped with a sun canopy. The hydraulic system provides a maximum total flow of GPM 20,2 (76.5 l/min). Equipped with Cat. 2 three-point linkage, the mechanical power lift provides position, draft, intermix and float control functions while ensuring a maximum lifting capacity of lb. 9570 (4350 kg). The Globalfarm tractors features one standard and two optional simple- and double-acting auxiliary valves.Perkins 1104D series engines
80
90
100
105
“TIER 3” Perkins direct-injection engine
1104A-44
1104A-44T
1104A-44T
1104D-44T
Cylinders / Displacement cm3
4 / 4400
4 / 4400
4 / 4400
4 / 4400
Max. power (ISO) HP/kW
74 / 54,5
83 / 61
92,5 / 68
98,6 / 72,5
Rated speed rpm
2200
2200
2200
2200
Max. torque Nm
261
352
384
384
Fuel tank capacity Lt
90
90
90
90

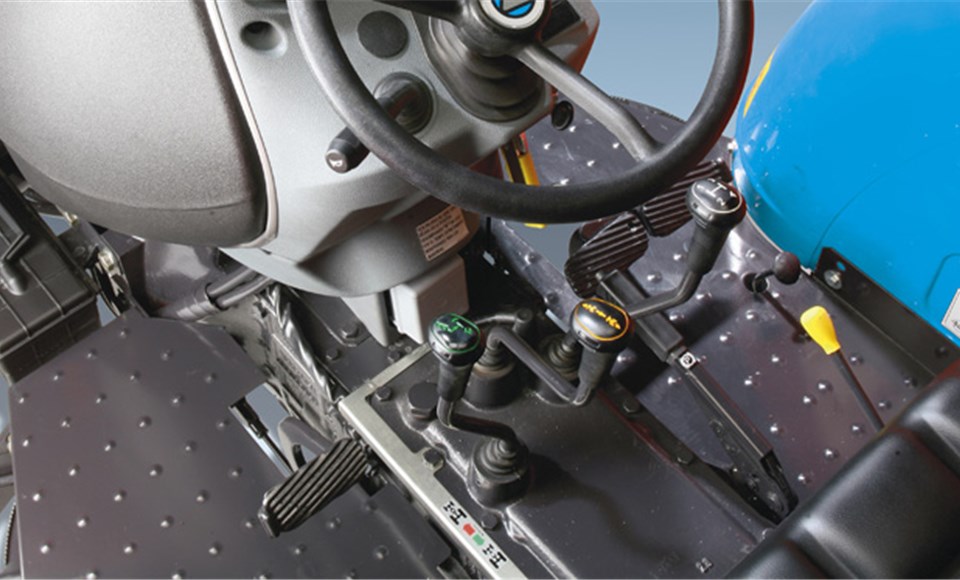

Three modular transmission options

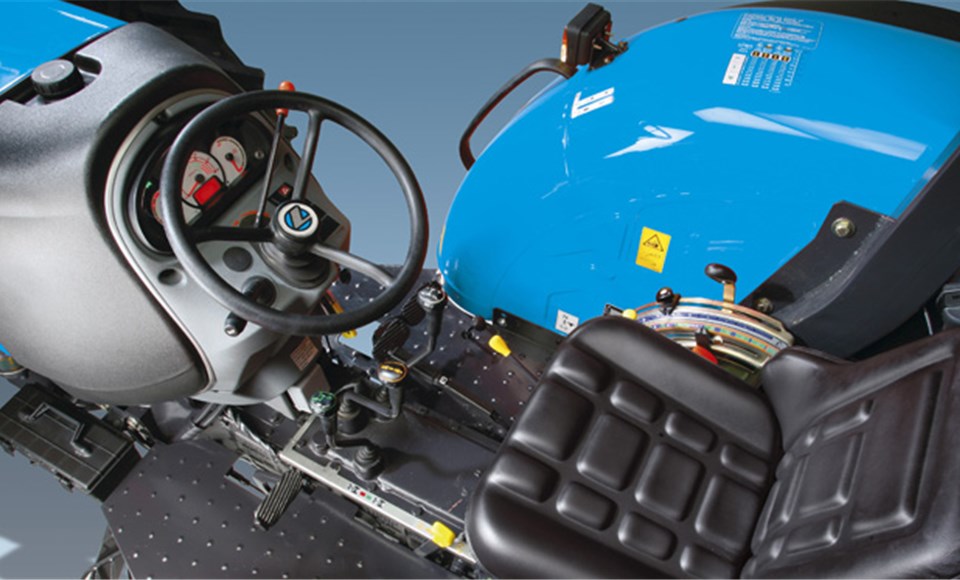

Ample and comfortable driver’s seat

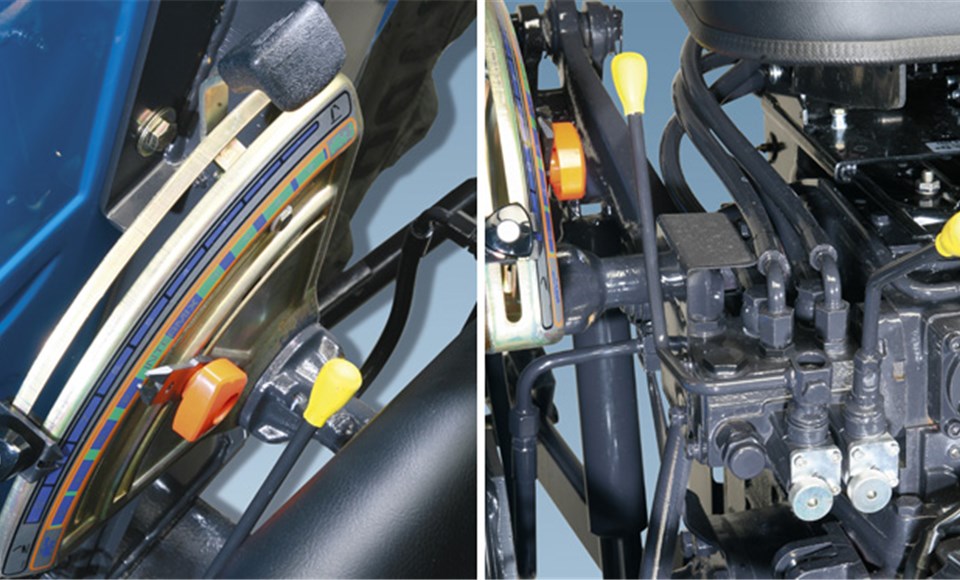

Powerful hydraulics for power lift and auxiliary valves
Dimensions and Weights
(in running order)
80
90
100
105
rear tyres 4WD
18,4 – 30
18,4 – 30
18,4 – 30
18.4-30
length (with ballast) in. (mm)
168,8 (4136)
168,8 (4136)
163,8 (4160)
163.8 (4160)
wheelbase 2WD/4WD in. (mm)
81,2 (2063)
81,2 (2063)
81,2 (2063)
93/92 (2365/2340)
height to steering wheel in. (mm)
69.7 (1772)
69.7 (1772)
69.7 (1772)
69.7 (1772)
height over hood in. (mm)
65.4 (1662)
65.4 (1662)
65.4 (1662)
65.4 (1662)
ground clearance 4WD in. (mm)
16 (407)
16 (407)
16 (407)
16 (407)
height to ROPS in. (mm)
100 (2542)
100 (2542)
100 (2542)
100 (2542)
min. width in. (mm)
81.2 (2063)
81.2 (2063)
81.2 (2063)
81.2 (2063)
min. turning radius (with brakes) 4WD in. (mm)
137.8
137.8
137.8
137.8
min. turning radius (without brakes) 4WD in. (mm)
161.4
161.4
161.4
161.4
weight (without ballast) 4WD LB (Kg)
7326
7326
7326
7326
