Trailed Spring Reset or HD S-tine (8.6 -12.2m) – Rovic – Trash Fieldspan

Product Information:

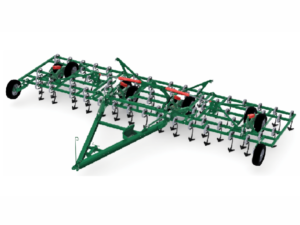

4 & 5 Row Trash Fieldspan
The Rovic Shearer Trailed 4 & 5 Row Trash Fieldspan’s have been designed for secondary cultivation and seedbed preparation. The models ranging in size from 8.6, – 12.2m are rated for tractors from 210 – 340kW and fitted with 580 edge-on spring reset tines (175mm working depth) mounted across 4 or 5 ranks (76 x 76 diamond: 8.6m 5-rank and 9.8/12.2m 4-rank) This gives an overall spacing of 150mm and coupled with the clean under-frame clearance and arrowhead-tine layout, ensures excellent trash flow. The folding of the implement for transport is Forward-Fold (The main-frame and wings first fold hydraulically from the horizontal working position to the Vertical, and then the wings fold hydraulically forward towards the tractor) To ensure accurate depth control across the working width of the implement, two 12 x 18 (Middle section) and two 11L x 15 (one on each wing) high floatation [...]

Product Information:

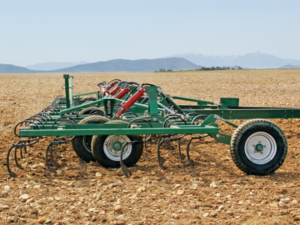

The NEW Rovic range of Trash Handicult ‘Flat-on’ cultivators has specifically been designed as a secondary cultivation implement for the small and large growers. The 3-Point mounted models come in 3 sizes (2.9, 5.2 and 7.0m) and are ideally suited for tractors rated from 40 – 130kW

The frames have specially been designed as flat-on (80 x 80 Square tubing sits flat on and not the traditional “Diamond”) so that one can either mount the new “590 Edge-on spring reset tine or the H.D. S-Tine. Both of these tines have an optimal working depth of 175mm and spaced at 225mm across 3 or 4 ranks. The arrowhead configuration of the tines ensures excellent trash flow and all 3 models are fitted with mechanical depth-control wheels to ensure accurate depth control. The 7.0m model is fitted with hydraulic folding-wings for easy transport. On all the models a range of optional equipment like finger harrows [...]
