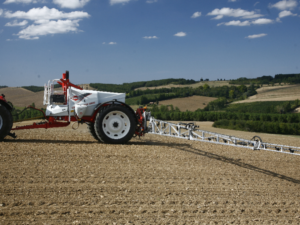

Kuhn – Kuhn 4500 – 7700l Grand large

  • July 19, 2016
  • Not categorized
  • Posted by
  • Comments Off on Kuhn – Kuhn 4500 – 7700l Grand large
Product Information:

Crop protection requires farmers to have high-performance machines so that they can intervene at the most appropriate time. The Grand Large meets these requirements with the following equipment: Frame with suspended, height-adjustable drawbar, suspended axle, hydraulic brakes, retractable hydraulic leg, suspended boom parallelogram, – polyester tank with rinsing tank – multifunctional valve panel, piston-diaphragm and centrifugal pumps for the required flow rates, EQUILIBRA boom suspension, and many options.

Features:
• 4000, 4500, 5000 Litre Polyester tanks
• Rinse tank 430 Litre
• Adjustable wheel track 1.8 – 2.25m
• Induction hopper with can rinse 35L
• PM 265 Piston diaphragm pump.
• Boom widths; aluminium 18 -38m
• Regulation DPME (DPS) or DPAE (RSB3 or REB+)


Download Brochure

  • July 19, 2016
  • Not categorized
  • Posted by

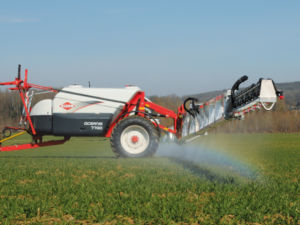

  • Comments Off on Kuhn – 4000 – 5000l Oceanis
Product Information:

Increasing farm productivity means having high-performance machines. The OCEANIS meets these requirements in its configuration: Frame made of HLE 700 steel, with height-adjustable drawbar and built-in parking stand, suspended axle, hydraulic brakes, multifunctional valve, suspended boom parallelogram, polyester tank with rinsing tank, piston-diaphragm and centrifugal pumps for the flow rates required, EQUILIBRA boom suspension, many options.

Features:
• 4500 to 7700 Litre Polyester tanks
• Rinse tank 550 Litre
• Adjustable wheel track 1.8 – 2.25m
• Induction hopper with can rinse 35L
• PM 370 or PM 500 Piston diaphragm pump.
• Boom widths: Aluminium 24 – 48m
• Regulation DPAE (RSB3 or REB+)

Download Brochure

  • July 19, 2016
  • Not categorized
  • Posted by

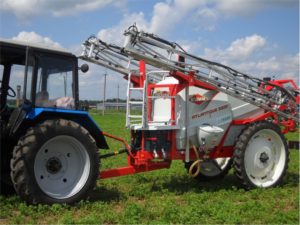

  • Comments Off on Kuhn – 2400 – 3200l Atlantique
Product Information:

Protecting crops requires a high adaptability of the farmer when facing occupational hazards. The ATLANTIQUE meets these needs by combining the various equipments: Frame in machine welded steel with drawbar adjustable in height, suspension on boom parallelogram, polyester tank with rinsing tank, housing with multifunction valves, piston-diaphragm and centrifugal pumps to meet flow requirements, link rods or EQUILIBRA boom suspension, plus numerous optional equipment.

Features:
Standard specification:
– 3200 Litre tank capacity
– Polyester tank with smooth inside and out
– Dry sight level gauge
– Comet PM265 Piston-diaphragm pump
– Parking jack
– Adjustable drawbar
– Large platform with rails
– Pressure guage
– Hydraulic agitation
– Large suction filter
– 300L rinse tank, 16L clean water tank
– 35L chemical inductor with can rinse
– 2 rotating rinse nozzles
– Track adjustable axle1.65 to 2.25m
– [...]
