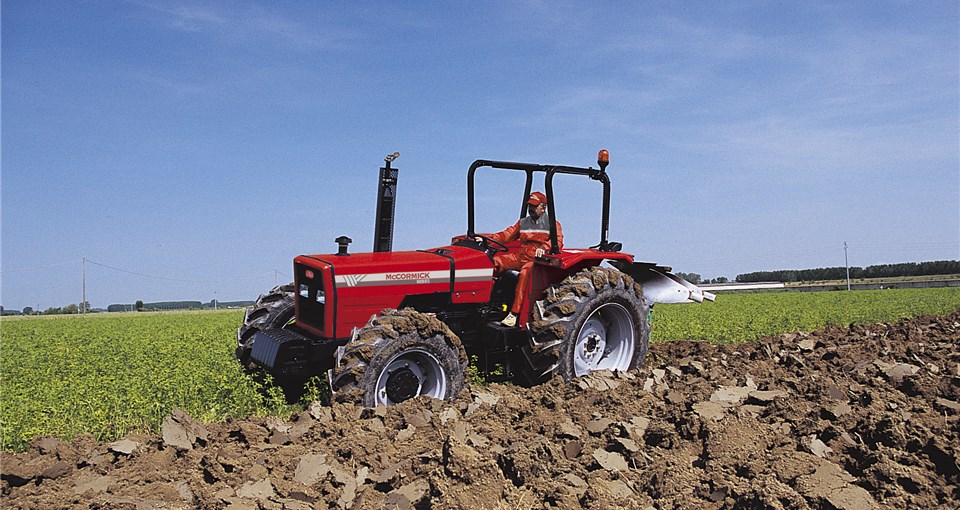

McCormick MB75 and 85 models
Thanks to their outstanding features McCormick MB75 and 85 models, in both 2 and 4WD version, can be considered ideal for a global utilization. Their essential and rugged construction provides first class operation and the highest levels of performance for utmost reliability and long life. All models are powered by the quiet, fuel efficient and environment-friendly “TIER 2” 4-cylinder Turbo 1100C-44 Perkins engines providing an exceptional torque back-up. The modular transmission is available in three versions: an entry level featuring a 12 forward + 4 reverse speeds, a second option providing 12FWD+12REV speeds with mechanical reverse shuttle and in addition to this latter a creep speed option (available on request) to achieve 24FWD+12REV speeds . A generously sized platform, an adjustable sprung seat and ergonomically arranged controls provide utmost driving comfort. The full tilting bonnet provides an easy access to the engine compartment for maintenance and routine service. The 4-post safety frame can be equipped with sun roof on request. The series comes in two models diversified by engine power and with three types of transmissions that make these tractors highly versatile and high performing to meet and even exceed the most demanding customers’ expectations.

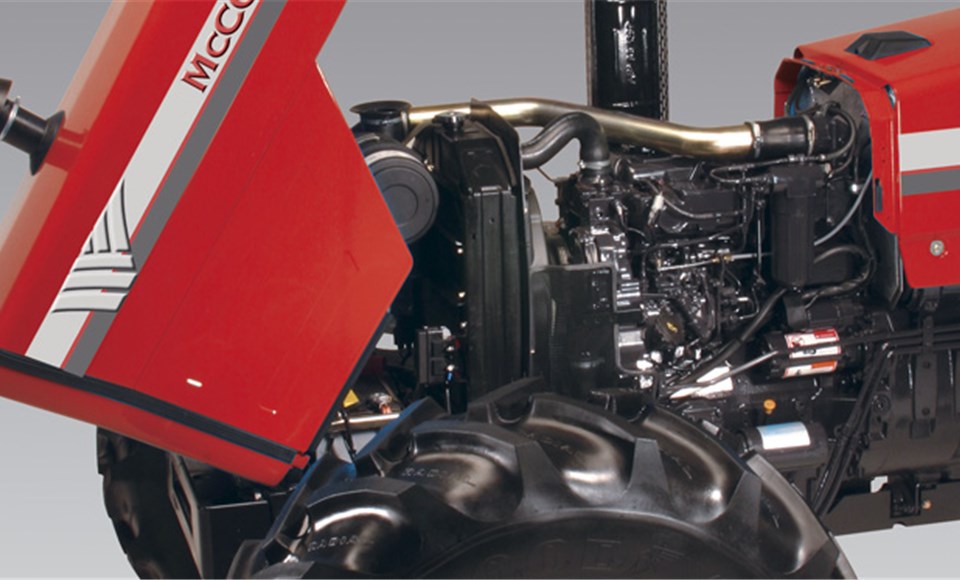

“TIER 2” 4-cylinder Turbo 1100C-44 Perkins
All models are powered by the quiet, fuel efficient and environment-friendly “TIER 2” 4-cylinder Turbo 1100C-44 Perkins engines providing an exceptional torque back-up.
| MB 75 | MB 85 | |
|---|---|---|
| “TIER 2” Perkins direct-injection engine | 1104C-44 | 1104C-44 |
| Cylinders / Displacement cm3 | 4 / 4400 | 4 / 4400 |
| Max. power (ISO) HP/kW | 74 / 54,5 | 81,6 / 60 |
| Rated speed Rpm | 2200 | 2200 |
| Max. torque Nm | 290 | 292 |
| Fuel tank capacity Lt | 86 | 86 |

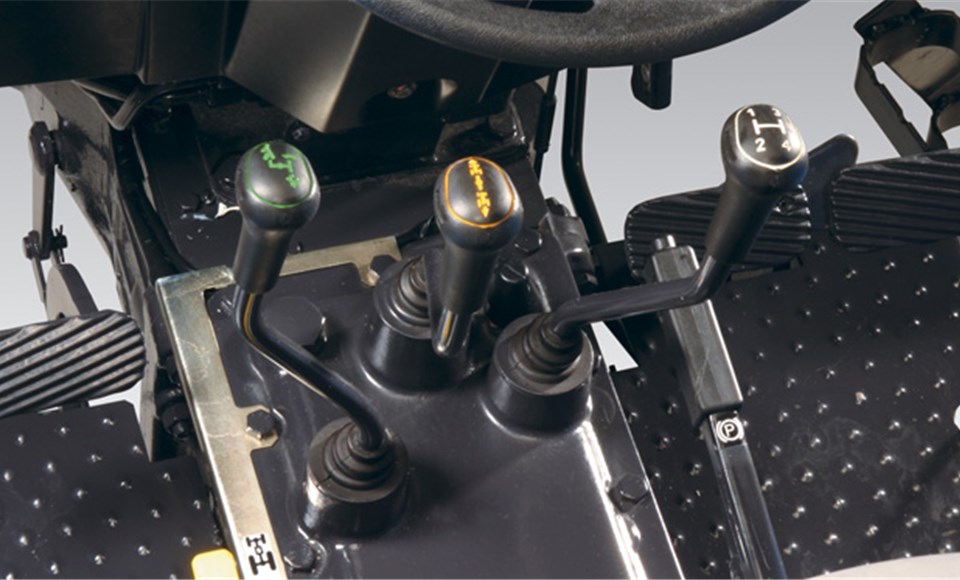

Two modular transmission options
The modular transmission is available in two version. The base transmission offers 12FWD+12REV speeds and can be integrated with a creep speed option to provide a total of 24FWD+12REV gears. The centrally-located reverse power shuttle lever allows reversing all gears and engaging the creep speed option.
Ample and comfortable driver’s seat
With fully adjustable sprung seat, hydraulic steering and ergonomically-arranged controls, the driver’s seat allows the operator to work with maximum comfort. The four-post ROPS can be optionally equipped with a sun canopy. A cab with heating and ventilation is also available as an option.
Powerful hydraulics for power lift and auxiliary valves
The hydraulic system provides a maximum total flow of GPM 20,2 (76.5 l/min). Equipped with Cat. 2 three-point linkage, the mechanical power lift provides position, draft, intermix and float control functions while ensuring a maximum lifting capacity of lb. 8140 (3700 kg). The MB Series tractors features one standard and two optional simple- and double-acting auxiliary valves.

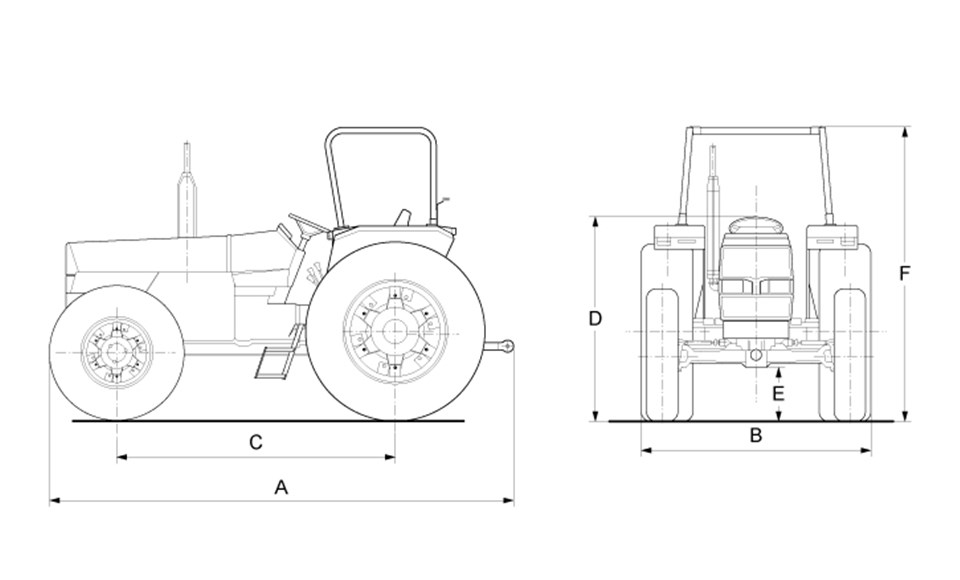

DIMENSIONS AND WEIGHTS
| MB 75 | MB 85 | |
|---|---|---|
| rear tyres 4WD | 18.4-30 | 18.4-30 |
| A total length without ballast in. (mm) | 150(3810) | 150(3810) |
| B minimum width in. (mm) | 73.6 (1870) | 73.6 (1870) |
| C wheelbase 2WD/4WD in. (mm) | 92.1 (2340) / 91.2 (2316) | 92.1 (2340) / 91.2 (2316) |
| D height at steering wheel in. (mm) | 67.7 (1720) | 67.7 (1720) |
| E max ground clearance 4WD in. (mm) | 15 (383) /17 (430) | 15 (383) /17 (430) |
| F height to safety frame in. (mm) | 102 (2590) | 102 (2590) |
| weight (without ballast) 2WD / 4WD lb. (Kg) | 6660 (3027) / 6.923 (3147) | 6660 (3027) / 6.923 (3147) |
