Kuhn – Dominator

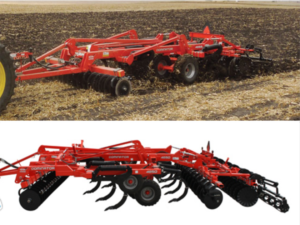

The DOMINATOR Primary Tillage System is changing fall tillage. This exciting new concept eliminates stalk shredding and extra seedbed preparation trips. By managing residue in the fall and leaving a more level fall seed bed condition, the DOMINATOR sets the stage for fast efficient spring seedbed trips and maximum yields.

Dominator 4855 Download Brochure

Dominator 4850 Download Brochure

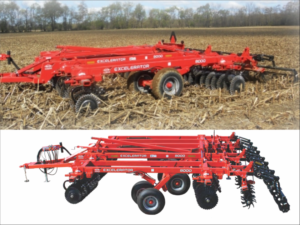

The Excelerator® vertical tillage system from Kuhn Krause provides exceptional residue cutting, soil and residue mixing and seed bed preparation in one pass, utilizing an exclusive 4-step process. True vertical tillage delivers residue cutting and soil mixing without soil shearing or smearing in the critical zone for seed placement and young seedling root development. With its unique Excalibur® blades designed to meet the challenges of cutting tough GMO residue, you can be confident that the residue management achieved during fall operation will allow maximum residue decomposition over winter. In addition, spring operation will accomplish your goals of superior seedbed preparation in high residue situations.

This exclusive 4-step process makes the Excelerator one of the only vertical tillage systems to provide operators a choice. …move soil laterally to meet the needs of filling ruts and smoothing fields following less than ideal harvest conditions. …leave more residue to meet requirements for highly erodible land (HEL) [...]

The HR 403/453/503/4004/4504/5004/6004DR extra heavy-duty foldable power harrow from ‘Kuhn’ in France is available as special import to South Africa. Please enquire for further information and specifications.

Features:
• Mounts to tractors 3 Point.
• Ideally suited for broad acre heavy-duty work.
• Folds in two to facilitate maneuverability
• Working widths from 4.0 to 6.0m
• Duplex central gearbox.
• Rated for tractors up to 206kw

The HR *3004D/3504D/4004D/*4504D range has specially been designed to work in extra heavy-duty conditions where contractors and large-scale farmers demand high reliability and performance at a low cost. Particular care has been given to fundamental criteria to allow for optimum seedbeds through choice of tools and simple adjustments. This enables the power harrows to adjust to all situations reducing maintenance and cost to a minimum. The comprehensive range, with working widths from 3.0 to 4.5m and rated for tractors up to a maximum of 184kw is fitted with a strong DUPLEX gearbox with a rear PTO as standard. The interchangeable gearwheels enable one to choose the rotor speed best adapted to the soil type and to give the desired crumbling effect. The whole driveline is protected by a cam type cutout clutch which when hitting an obstacle or foreign body causes the full release of the transmission to instantly put itself into freewheel. [...]

The HRB 252D/*302D and HRB 303D/*353D*403D range has specially been designed to work in heavy-duty conditions where reliability and performance would be at a premium. Particular care has been given to fundamental criteria to allow for optimum seedbeds through choice of tools and simple adjustments. This enables the harrows to adjust to all situations reducing maintenance and cost to a minimum. The comprehensive range, with working widths from 2.5 to 4.0m and rated for tractors from 73 to 118kw is fitted with a DUPLEX gearbox that has a rear PTO fitted as a standard. The DUPLEX gearbox make provision for fast adaptation to the different working conditions and the whole driveline is protected by a friction slip clutch or a cam type cutout clutch. On both ranges the headstock has been designed to provide high rigidity and resistance to distortion and on some of the models the blade attachment is by means of [...]

The HRB 122/152/**182/**202 medium duty power harrow range has specially been designed for orchard and vineyard work where low profile, narrow widths and rounded edges are at a premium. The comprehensive range, with working widths from 1.2 to 2.1m and rated for tractors from 18 to 30kw may be small in size, but is just as strong as the wider models. The single speed gearbox has a rear PTO fitted as standard to make provision for secondary implements required for vineyard and orchard work. A range of compulsory equipment like crumble and packer rollers for varying working conditions and applications is available.
* Available as special import to S.A. (Please enquire)

Features:
• Mounts to tractors 3 Point hitch.
• Ideally suited for orchards and vineyards.
• Working widths from 1.2 to 2.1m
• Single speed gearbox with rear PTO.
• Rated for tractors from 18kw-30kw
• Range of compulsory equipment.

Download [...]

The **EL 122 and ** EL 162 rotary tillers is available as a special import to S.A. (Please enquire) The range with working widths from 2.5 to 3m provide optimized seedbed preparation that enhance soil structure and increases germination and root development for vigorous plant growth to ensure maximum yields. Furthermore, reduced operating cost have been made possible through broad working widths, versatility and operator convenience. The EL122 and 162 range is intended for tractors rated from 73 to 121kw and the one-piece frame offers improved rigidity even in the most arduous conditions. The heavy-duty dual speed gearbox allows for the setting of 4 rotor speeds (This is made possible by transposing gears as the gearbox includes two sets of gears, one fitted and the other located on the rear cover) to provide ideal rotational speed required for any given soil. An output PTO enables power to be transmitted to other implements fitted [...]

The **EL 62 range of Rotary tiller with working widths from 1.19 to 2.1m is rated for small to medium size tractors (48kw in size) and is available as a special import. Please enquire for further information.
The *EL 82 and *EL 92 range however is imported and is the fruit of a very long experience in soil preparation and as many a year in research and development. Particular care has been given to a high working versatility, a machine equipped with simple adjustments enabling fast adaptation to all situations, a design for demanding vineyard, orchard, market garden and horticulture operation coupled with reliability and long field service for peace of mind. The frame is of box type construction providing high rigidity and resistance to distortion. The central heavy-duty cast iron gearbox designed for tractors up to 63kw (EL82) and 70kw (EL92) drives the rotor via a side drive gearbox which is [...]

The **EL43 range of Rotary Tiller with working widths from 1.07 to 1.48m is particularly suited for small tractors ranging in size from 11 to 30kw and is available as a special import. Please enquire for further information.
The EL 53 range however is imported to S.A. and has been designed for operation in more demanding environments and on tractors with greater horsepower of up to 50hp (37kw). The range with working widths from 0.97 to 1.88m meets the needs of contractors who demand the most from a tiller and is the ideal tool for soil preparation needs of vineyard, orchard and landscape contractors. A central single speed gearbox mounted directly to the tiller frame drives the rotor via a side drive chain that runs in a permanent oil bath. The oversized chain, with automatic tension adjustments, minimizes maintenance whilst providing a smooth drive and long service life. Offset of the tiller [...]

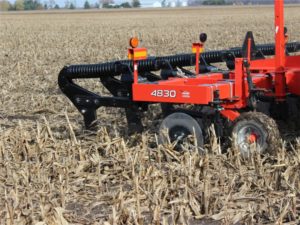

The Kuhn Krause 4830 In Line Ripper is the ideal tool to fight soil compaction, one of the leading causes of yield reduction. Designed to provide maximum soil fracturing, while leaving most surface residue intact, the 4830 effectively reduces runoff and soil erosion.

The positive effects of ripping with a 4830 also include these important agronomic factors: better soil tilth, enhanced root penetration and increased utilization of nutrients.

4830 In Line Rippers are available in 4 shank to 7 shank rigid models and 6 shank to 9 shank flat folding models, with shank spacing choices of 30″, 36″, 38″ or 40″. The unique, 180 degree, flat-fold configuration makes transport and storage more convenient. The 4830 can be equipped with spring reset shanks or rigid, shear-bolt protected shanks for soils where rock is not a concern.

Download Brochure
