Rovic – Trailed S-Tine (5.7 – 11.2m)

  • July 19, 2016
  • Not categorized
  • Posted by
  • Comments Off on Rovic – Trailed S-Tine (5.7 – 11.2m)
Product Information:

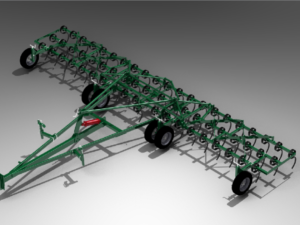

The Rovic Shearer trailed MKIV-Fieldspan range with an optimum working depth of 100mm has been developed specifically for seedbed preparation in broad-acre working. The trailed implements, ranging in size from 5.7m to 11.2m suited for tractors of 80kw to 170kw is fitted with the proven spring-action “S-tine” affording it unique protection against obstructions. The tine spacing of 150mm, with increased space between the rows, facilitates trash flow. Depth control consists of dual depth-wheels on the central section, with single wheels on either wing. The depth of each wheel set is individually adjustable, using a mechanical screw. The frame can tilt forward hydraulically to facilitate turning at the end of the field and to clear trash when working under adverse conditions. A range of optional equipment like finger harrows and seedbed rollers can be fitted to assist with optimum seedbed preparation.

Features :
• Designed for broad-acre seedbed preparation.
• Tractor-drawn model
• Fitted [...]

  • July 19, 2016
  • Not categorized
  • Posted by
  • Comments Off on Rovic – 3-Point S-Tine (1.6 – 4.7m)
Product Information:

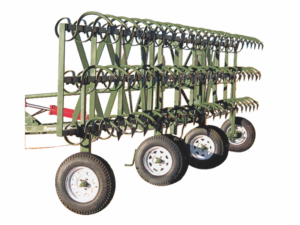

The Rovic Shearer 3-Point mounted MKII-Handicult range with a optimum working depth of 100mm has been developed for light cultivation, weed control and seedbed preparation. The proven spring-action of the “S-tine” at 150mm tine spacing affords unique protection against obstructions, while the light, yet sturdy frame ensures easy movement and economic operation. With 3-Point linkage and working widths of 1.6m to 4.7m, the implement is suited to tractors of 30kw to 70kw. Mechanical depth-wheels (optional on the 1.6m and 2.9m models but standard for the 3.5m and 4.7m) assist tractor hydraulics to ensure good depth control. Mechanical “folding wings” on the 4.7m MKII Handicult facilitate transport. A range of optional equipment like finger harrows and seedbed rollers can be fitted to assist with optimum seedbed preparation.

Features
• Developed for light cultivation.
• 3-Point mounted
• Fitted with “S-tines” at 150mm spacing.
• Optimum working depth of 100mm
• Working widths from 1.6m [...]
