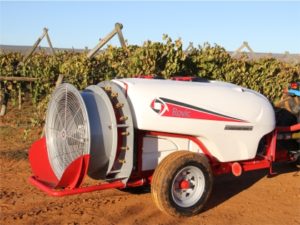

Rovic – Trailed Axial (1500 – 2000l)

Product Information:

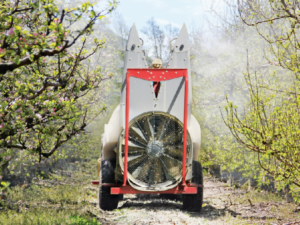

The Ø940mm INDEPENDENT fan also has twin ports and is also equipped with a stator for improved efficiency, adjustable fan pitch and overrun clutch. This is identical to the Ø840mm model with the exception that up to 65 000 m³/h can be produced drawing only 35kw on the PTO at maximum setting. (Low kw required for excellent airflow) An added advantage is that it can provide a very high air delivery for the spraying of large trees effectively.

Common features on all the models would be the easy reachable suction filter that has a reflux valve to enable full tank filter rinses. Two brass pressure filters with quick cleaning system to minimize the risk of nozzle blockages and all the models also equipped with roll over anti drip nozzle holders with ALBUZ ATR.  The flow and pressure control regulator is tractor mounted.

Features:
• Range of models, 1500, 2000 Litre.
• Fan [...]

Product Information:

Benefits:

  • High quality Poly-ethylene Tank, smoothness better than 100 micron for easy tank cleaning
  • Clean water tank for spray lines and filters rising. Hand wash tank for safety hygiene.
  • Comet APS121 pump, 120 l/min , 50 Bar maximum.
  • BIMA 2-speed gearbox with neutral position for air assisted or handgun applications.
  • La Magdalena Class 6 PTO with CV head for better turning radius.
  • Comet Alfa 2 control unit with full bypass function for maximum agitation during filling.
  • TRELLIRBORG ALTIPLUS high pressure hoses, chemically resistant plumbing with full bore couplers for minimal pressure losses through the system and optimal energy use.
  • Drawbar has two height positions and multiple length positions for optimal st up op tractor and sprayer combination.
  • Multi-Wing Fan with adjustable blade angles for varying air capacity requirements.
  • Adjustable track width through split axle and clamp arrangement (1.2 to 1.5m) to set up perfectly behind tractor.
  • Control unit brackets supplied for both [...]
